NMS Heavy-Duty Feeder Equipment Series

Description：
The HPF series grizzly feeder can be used for the feeding of primary jaw crusher, impact crusher, and hammer crusher, which is widely used in stone materials, building materials, and the metallurgical mining industry. The max throughput reaches 1500TPH, and the maximum feeding particle size is 1.5 meters, and the standard feeding capacity is 25-45 cubic meters.

Advantage：
◆ Gear and bearing isolation oil lubrication;
◆ The tank and bearing are designed according to the heavy-duty condition and have a high capacity of handling and shock resistance;
◆ The universal joint drive is direct, which has a larger variable frequency range adjustment space;

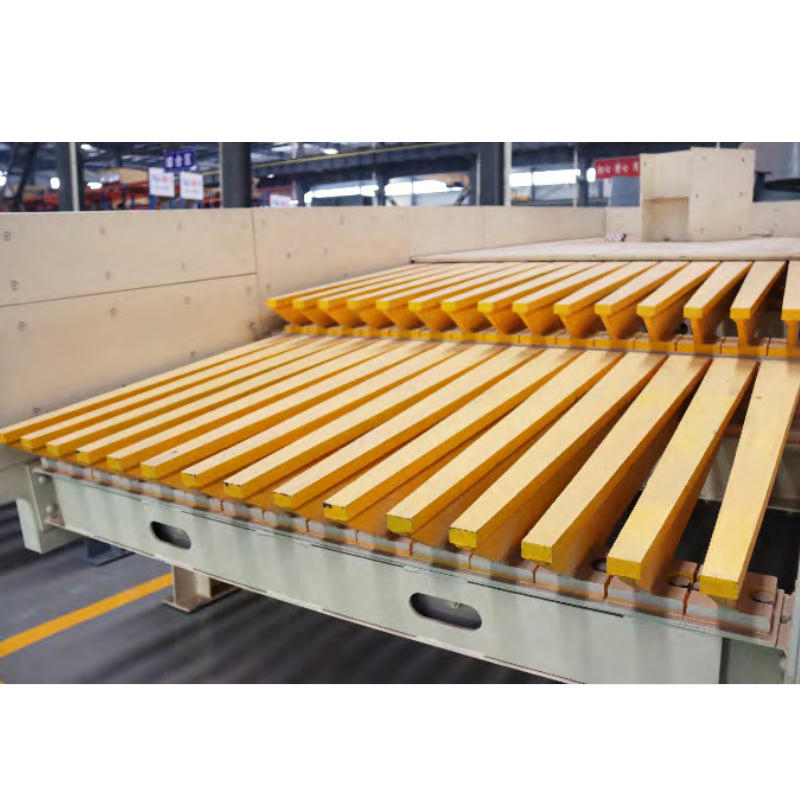

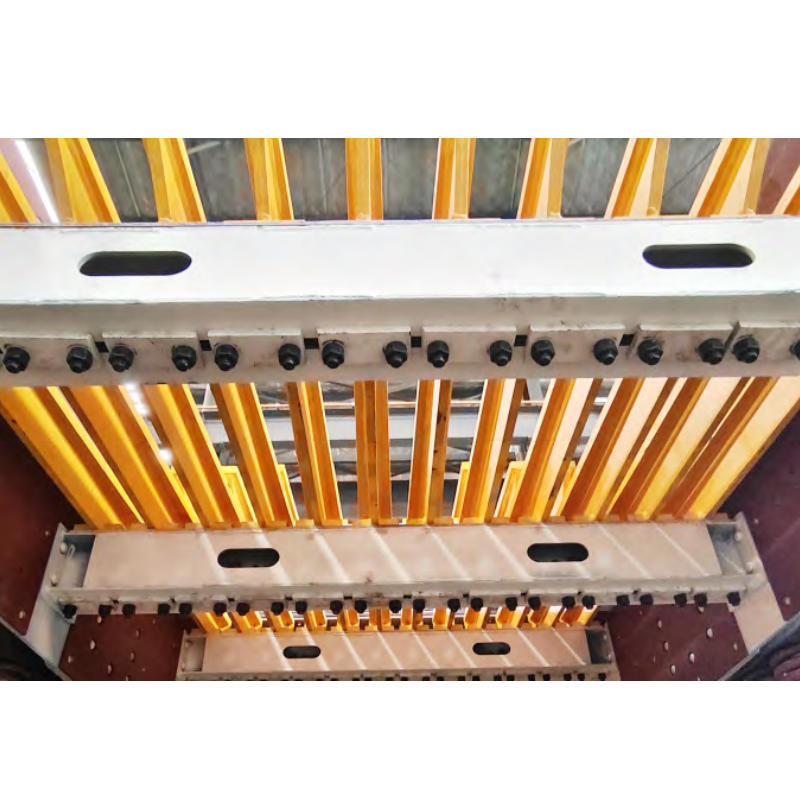

◆ The opening of the bar can be adjusted in the range of 80 and 200mm, and the gap between the two bars is high, which is conducive to the redistribution of materials;
◆ The user can select the second screen mesh, which is more accurate for the separation of material and soil.

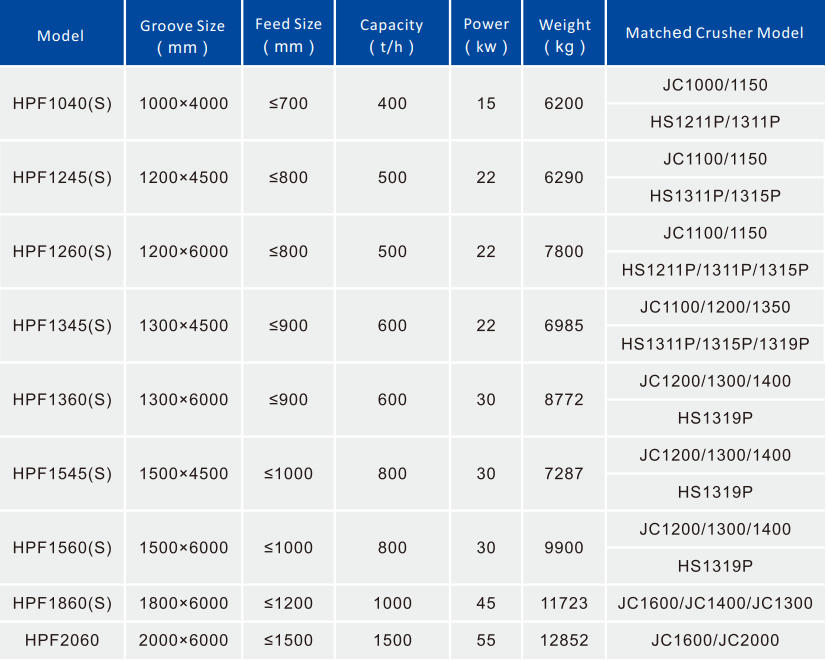

Technical specifications：

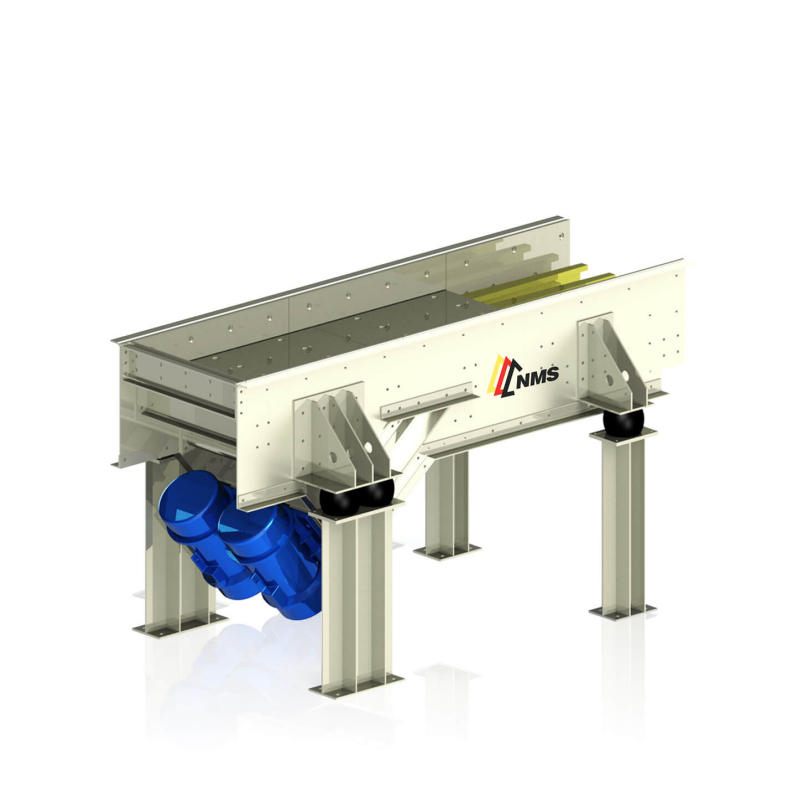

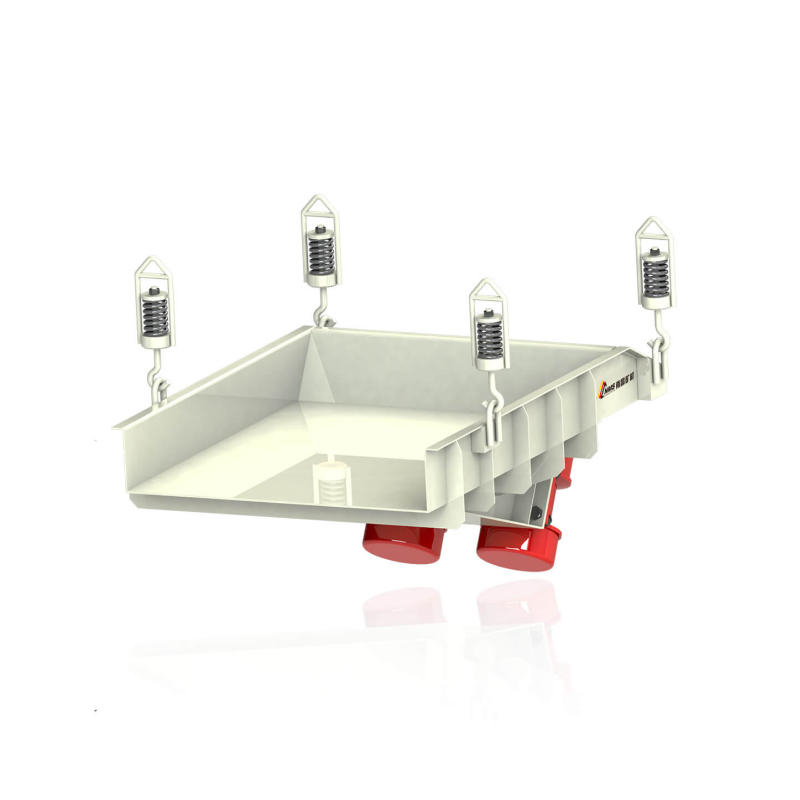

Other Feeding Equipment We Supply：
